Taming tmux: Find One Process Among Many Windows

I’m a big fan of tmux and I use it daily. Over time I will open more and more windows and my workspace starts to get a bit cluttered. Occasionally I will try to open some file in vim that is already open in another window. I used to dread playing “find the right window,” especially if I had backgrounded vim. This happened often enough that I spent the time to make a little tmux keybinding for finding that window automatically.

The problem

Vim users will be used to seeing this screen and may even dread it.

E325: ATTENTION
Found a swap file by the name "~/.vim/swaps/foo.txt.swp"
          owned by: jwalker   dated: Wed Oct  5 18:10:25 2016
         file name: ~jwalker/foo.txt
          modified: no
         user name: jwalker   host name: jacobs-mbp
        process ID: 79121 (still running)
While opening file "foo.txt"
             dated: Wed Oct  5 18:10:25 2016

(1) Another program may be editing the same file.  If this is the case,
    be careful not to end up with two different instances of the same
    file when making changes.  Quit, or continue with caution.
(2) An edit session for this file crashed.
    If this is the case, use ":recover" or "vim -r foo.txt"
    to recover the changes (see ":help recovery").
    If you did this already, delete the swap file "/Users/jwalker/.vim/swaps/foo.txt.swp"
    to avoid this message.

Swap file "~/.vim/swaps/foo.txt.swp" already exists!
[O]pen Read-Only, (E)dit anyway, (R)ecover, (Q)uit, (A)bort:

Do you see the line that says process ID: 79121? That gives us the process id (pid for short) of the vim process that’s editing this file. What we’ll do is take that pid and ask tmux to find it for us.

The solution

Add this to your ~/.tmux.conf file (and reload the config if necessary)

bind-key W command-prompt -p "Switch to pane with pid:" "run-shell 'pane=\$(ps eww %% | sed \"1d; s/^.*TMUX_PANE=//;s/ .*//\"); [[ -z \$pane ]] && tmux display-message \"could not find pid\" || tmux switch-client -t \$pane'"

With that in our config, and knowing the pid we want to find, we hit prefix W. Prefix defaults to ctrl-b and I chose capital W because I remember this command as Where and w was already taken. When we do this our tmux will prompt Switch to pane with pid: so we’ll type in 79121 enter and tmux automatically switches to the right window - even in another session. How cool! Let’s see it in action!

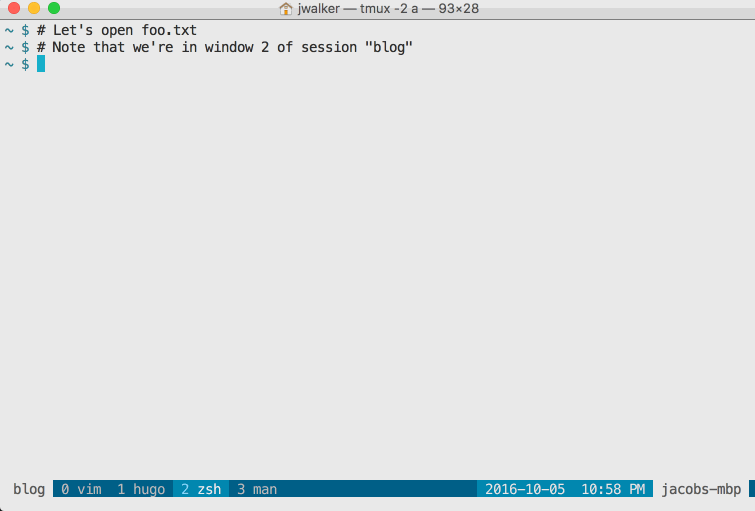

finding tmux window containing pid

Break it down now

Let’s unravel this a bit to see the different pieces. It’s all on one line and there is a lot of escaping going on because it’s a script within a script within a string… but if we split it up it’s not hard to follow.

First, our key binding runs the tmux command command-prompt with two arguments: the prompt to display to the user, and the tmux command to run. That command is run-shell and the argument we pass to that is the shell script.

The script first runs ps eww %%. The %% gets replaced with whatever you typed in the command prompt. In our example it becomes ps eww 79121. ps is a tool that inspects the process list for information. The flag e causes it to include the environment variables that were present when the process launched, and the flags ww improve the formatting a bit (and help for parsing on ubuntu). The ps tool accepts different flags and in different styles; this is the BSD format which works on a Mac and seems to be supported by most Linux distros as well. Providing the pid as an argument limits the output to just the process we care about. That command gives output that looks like this (abbreviated a bit for this post):

  PID   TT  STAT      TIME COMMAND
79121 s021  S+     0:00.58 vim foo.txt TERM=screen-256color USER=jwalker PAGER=less EDITOR=/usr/local/bin/vim LANG=en_US.UTF-8 LC_CTYPE=en_US.UTF-8 TMUX_PANE=%115 PWD=/Users/jwalker SHELL=/bin/zsh

So we can see the process in question and we can see its environment variables. The one we care about is called TMUX_PANE. Every time you open a new window or split a window the tmux daemon assigns that pane a unique id and sets it in this environment variable TMUX_PANE. That is the secret that will make this all work but we need to extract it.

The next step of the script is to pipe the output of ps to sed with a little sed script. This script deletes the header line, deletes everything up to and including TMUX_PANE=, then deletes everything after the value. At this point all we’re left with is the value which is %115.

Both the ps and sed commands were ran in a subshell $() and the final output is assigned to the variable pane. Next, we do an evaluation to see if pane is empty (perhaps we mistyped the pid). We use [[ -z $pane ]] which will succeed if it is empty. In that case we run tmux display-message "could not find pid" and we’re done.

If pane was not empty we run tmux switch-client -t $pane. That command instructs the client to switch to the pane with id %115.

In conclusion

I hope this little script makes your tmux experience a little better. I don’t use it every day myself but when it comes up I am glad to have it. I would also like to point out that although I used a vim process in my example there’s nothing really vim specific about this tip. You could use this command to switch to the pane running any process.
